Product Description

What is 1100 Aluminium alloy used for?

Aluminum 1100 can be shaped into many different products, including chemical equipment, railroad tank cars, fin stock, dials, name plates, cooking utensils, rivets, reflectors and sheet metal. The plumbing and lighting industries also use aluminum 1100, as do a wide variety of other industries.

What type of aluminum is 1100?

1100-H14 aluminum is usually what is meant by "commercial grade aluminum". It is known for its superior corrosion resistance, formability, conductivity, and high weldability. It is not used in applications that require high strength or hardness. 1100 is nonmagmetic, weldable, and not heat treatable.

Can you weld 1100 aluminum?

Alloy 1100 is highly resistant to chemical attack and weathering. It is a relatively soft alloy that is very formable and is used extensively in thin gauge and foil products. It has good welding characteristics and it is also used as a filler alloy for welding purposes.

Can 1100 aluminum be extruded?

1100 aluminum – 1100 aluminum is soft and has virtually no added ingredients. It cannot be heat treated, but can be extruded into complex shapes while maintaining a bright finish.

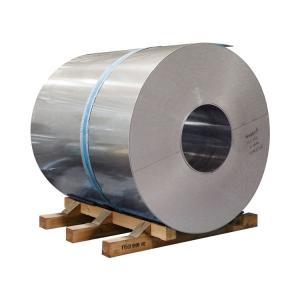

Products Name	Aluminium Coil
Alloy/Grade	1050, 1060, 1070, 1100, 1200, 2024, 3003, 3104, 3105, 3005, 5052, 5754, 5083, 5251, 6061, 6063, 6082, 7075, 8011, 8079, 8021
Temper	F, O, H	MOQ	5T for customized, 2T for stock
Thickness	0.014mm-20mm	Packaging	Wooden Pallet for Strip & Coil
Width	60mm-2650mm	Delivery	15-25days for production
Material	CC & DC route	ID	76/89/152/300/405/508/790/800mm
Type	Strip, Coil	Origin	China
Standard	GB/T, ASTM, EN	Loading Port	Any port of China, Shanghai & Ningbo & Qingdao
Surface	Mill Finish, Anodized, Color coated PE Film Available	Delivery Methods	By sea: Any port in China
Certificates	ISO, SGS

Alloy Series	Typical Alloy	Introduction
1000 Series	1050 1060 1070 1100	Industrial Pure Aluminium. In all series, 1000 series belongs to the series with the largest aluminium content. The purity can reach over 99.00%.
2000 Series	2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17	Aluminium-copper Alloys. 2000 series is characterized by high hardness, in which the content of copper is the highest, about 3-5%.
3000 Series	3A21, 3003, 3103, 3004, 3005, 3105	Aluminium-manganese Alloys. 3000 series aluminium sheet is mainly composed of manganese. The manganese content ranges from 1.0% to 1.5%. It is a series with better rust-proof function.
4000 Series	4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A	Al-Si Alloys. Usually, the silicon content is between 4.5 and 6.0%. It belongs to building materials, mechanical parts, forging materials, welding materials, low melting point, good corrosion resistance.
5000 Series	5052, 5083, 5754, 5005, 5086,5182	Al-Mg Alloys. 5000 series aluminium alloy belongs to the more commonly used alloy aluminium series, the main element is magnesium, the magnesium content is between 3-5%. The main characteristics are low density, high tensile strength and high elongation.
6000 Series	6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02	Aluminium Magnesium Silicon Alloys. The representative 6061 mainly contains magnesium and silicon, so it concentrates the advantages of 4000 series and 5000 Series. 6061 is a cold-treated aluminium forging product, which is suitable for applications requiring high corrosion resistance and oxidation resistance.
7000 Series	7075, 7A04, 7A09, 7A52, 7A05	Aluminium, Zinc, Magnesium and Copper Alloys. The representative 7075 mainly contains zinc. It is heat-treatable alloy, belongs to super-hard aluminium alloy, and has good wear resistance. 7075 aluminium plate is stress-relieved and will not deform or warp after processing.

Chemical Composition(%)

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Zr

Al

1235

≤0.65 (Fe+Si)

≤0.05

≤0.05

≤0.05

-

-

≤0.10

≤0.03

-

≥99.35

1145

≤0.55 (Fe+Si)

≤0.05

≤0.05

≤0.05

-

-

≤0.05

≤0.03

-

≥99.45

8011

0.50-0.9

0.6-1.0

≤0.10

≤0.20

≤0.05

≤0.05

-

≤0.10

≤0.08

-

Remainder

8079

0.50-0.3

0.7-1.3

≤0.05

-

-

-

-

≤0.10

-

-

Remainder
